Homogenizers for cosmetics

Homogenizers for disinfectants, detergents and shampoos







колоидна мелница КМ-100

колоидна мелница КМ-100

колоидна мелница КМ-100


Homogenizers for toothpaste

The vacuum homogenizers are used in cosmetics, pharmaceutical and chemical industry for production of gells, toothpaste etc. Mixing and homogenising elements are chosen depending on technologies of processing a material for homogenize.

COMPLETE:

  1. Mixing vessel with double jacket and insulation
  2. Anchor type agitator with scraper blades
  3. Colloid mill
  4. Dissolver
  5. Vacuum system with pipeline
  6. Lifting and lowering of the lid including also mixing elements by hydraulic system
  7. Dense liquid pump
  8. Electrical control panel
  9. Frame

The parts in contact with the product are made in stainless steel AISI 316. The machine is designed in accordance with GMP directives. Homogenizer is mounted on frame and does not require special foundation. The vacuum homogenizers can be used in all branches of industry in which liquid to semi-solid or solid products are to be manufactured in different process stages, this to be performed in a single installation:

The selection of the mixing elements is principally dependent on the technology, product viscosity, vessel dimensions etc.

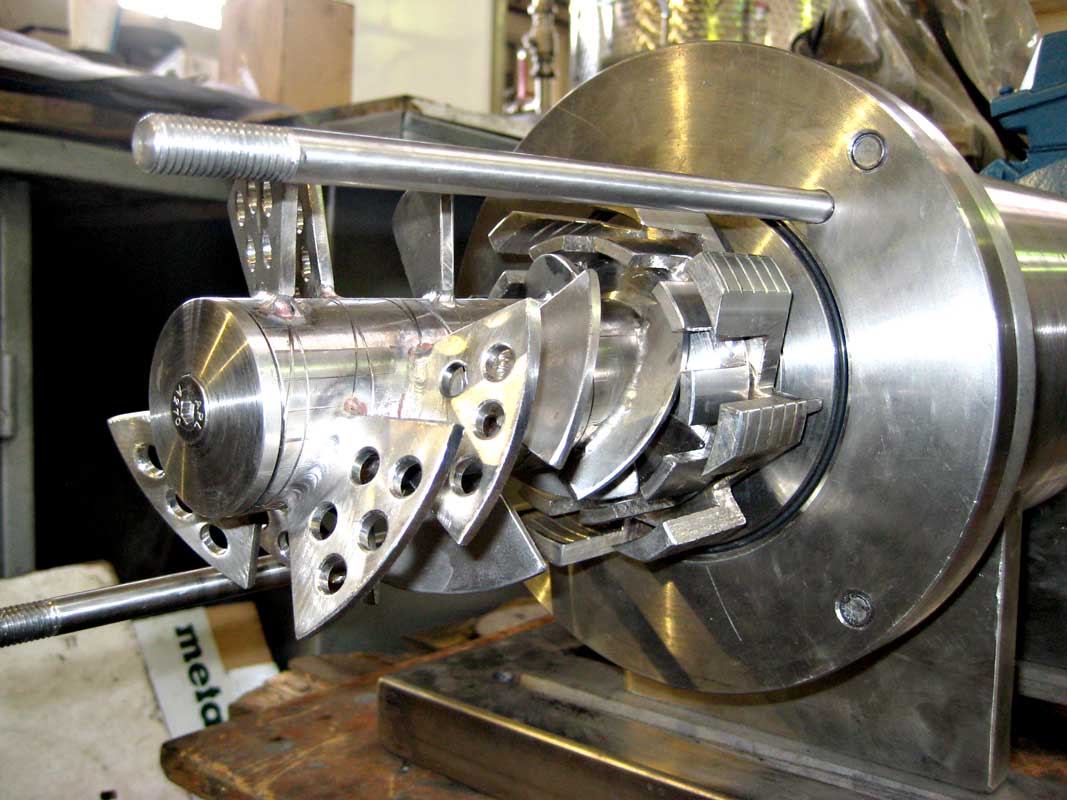

ХДП-130

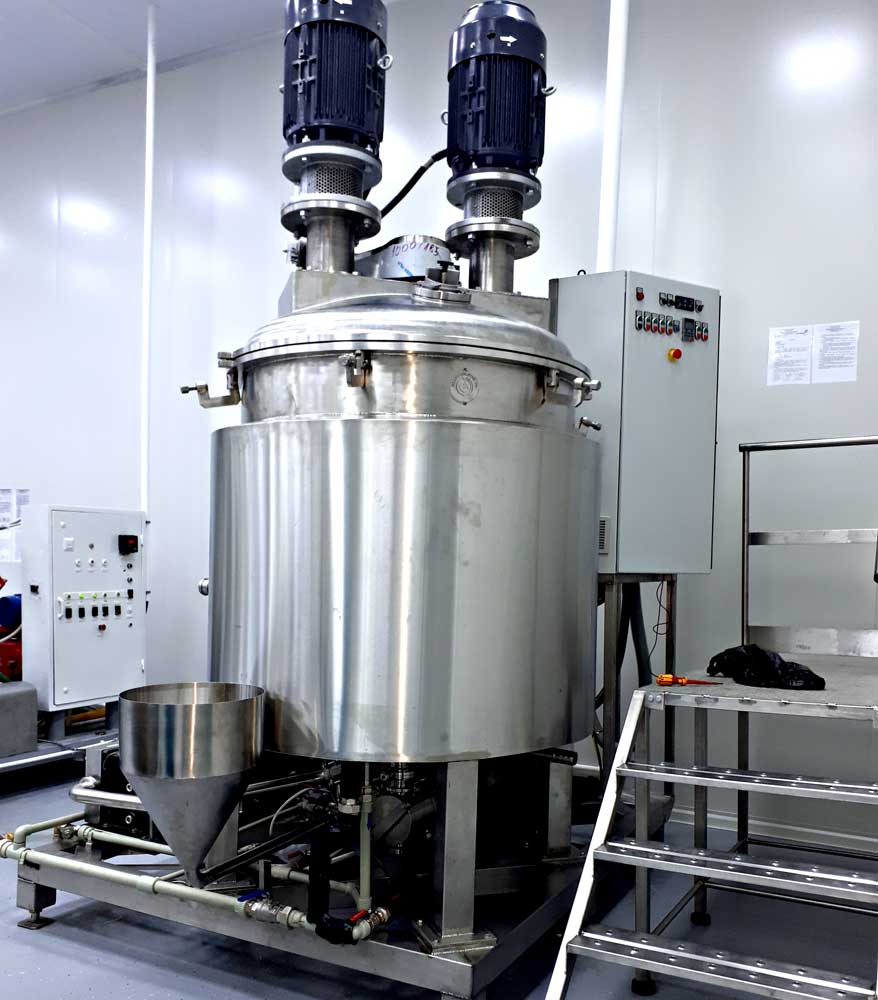

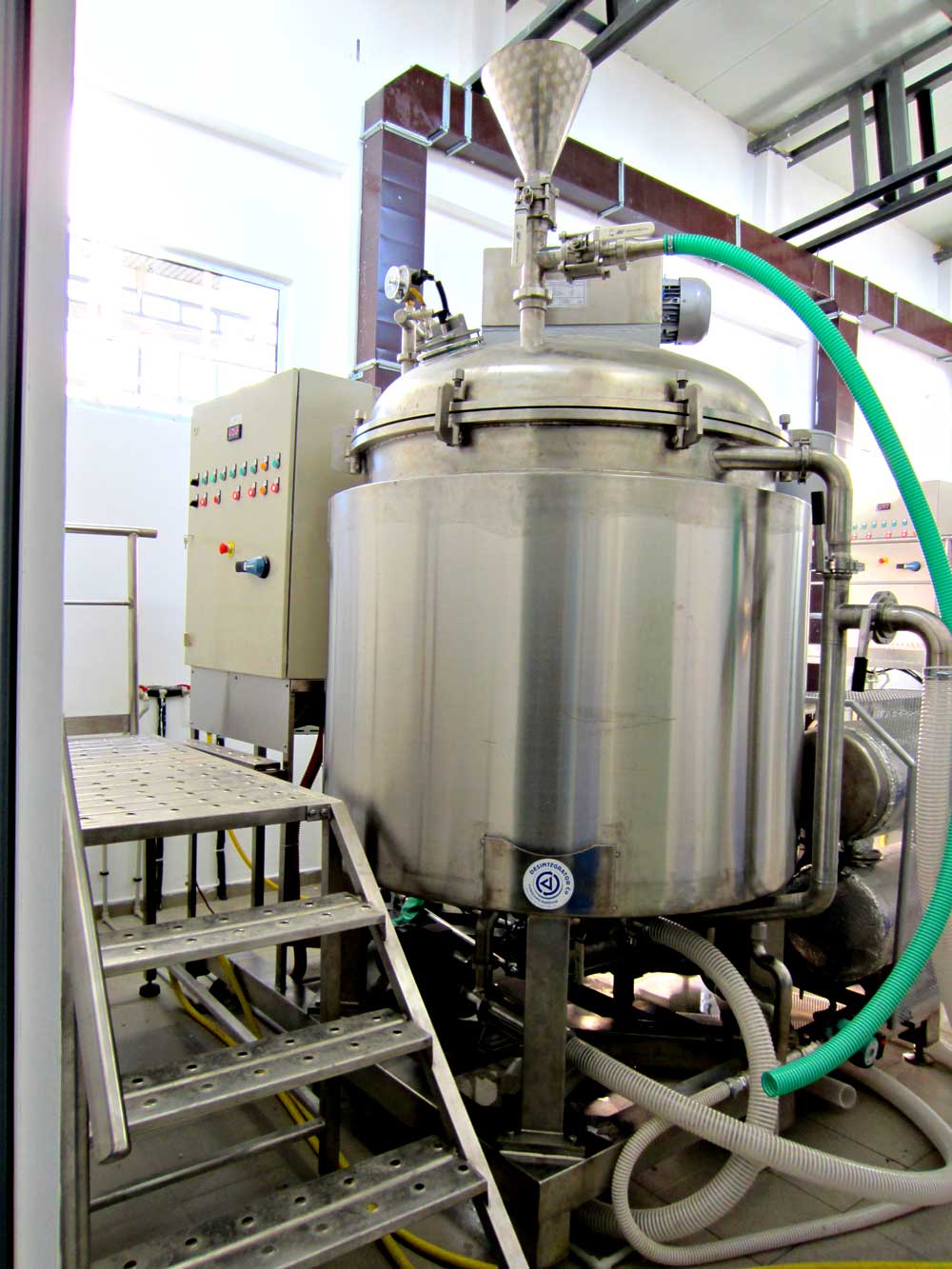

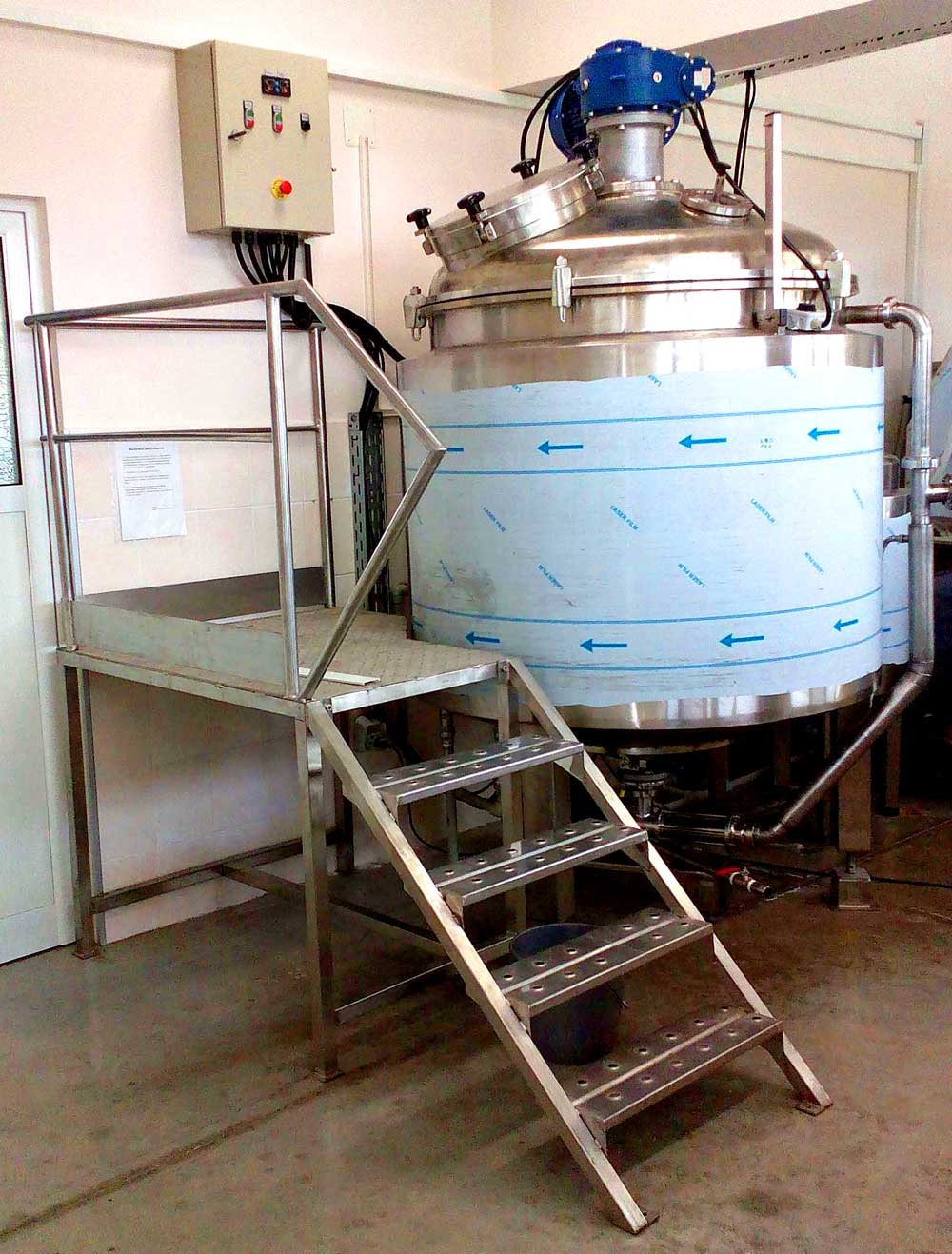

V-1000 л.


Model Useful volume, l Installed power, kW Overall Dimensions LxBxH, mm Max. mounting height, mm
V-5 5 3.75 940 х 820 х 1220 -
V-50 50 6 1200 х 600 х 1910 2 450
V-150 150 14 1850 х 750 х 2150 2 800
V-200 200 15 2000 x 1000 x 2000 2 800
V-600 600 38 2500 х 2200 х 2900 3 700
V-1000 1000 32 2500 х 2200 х 2900 4 100

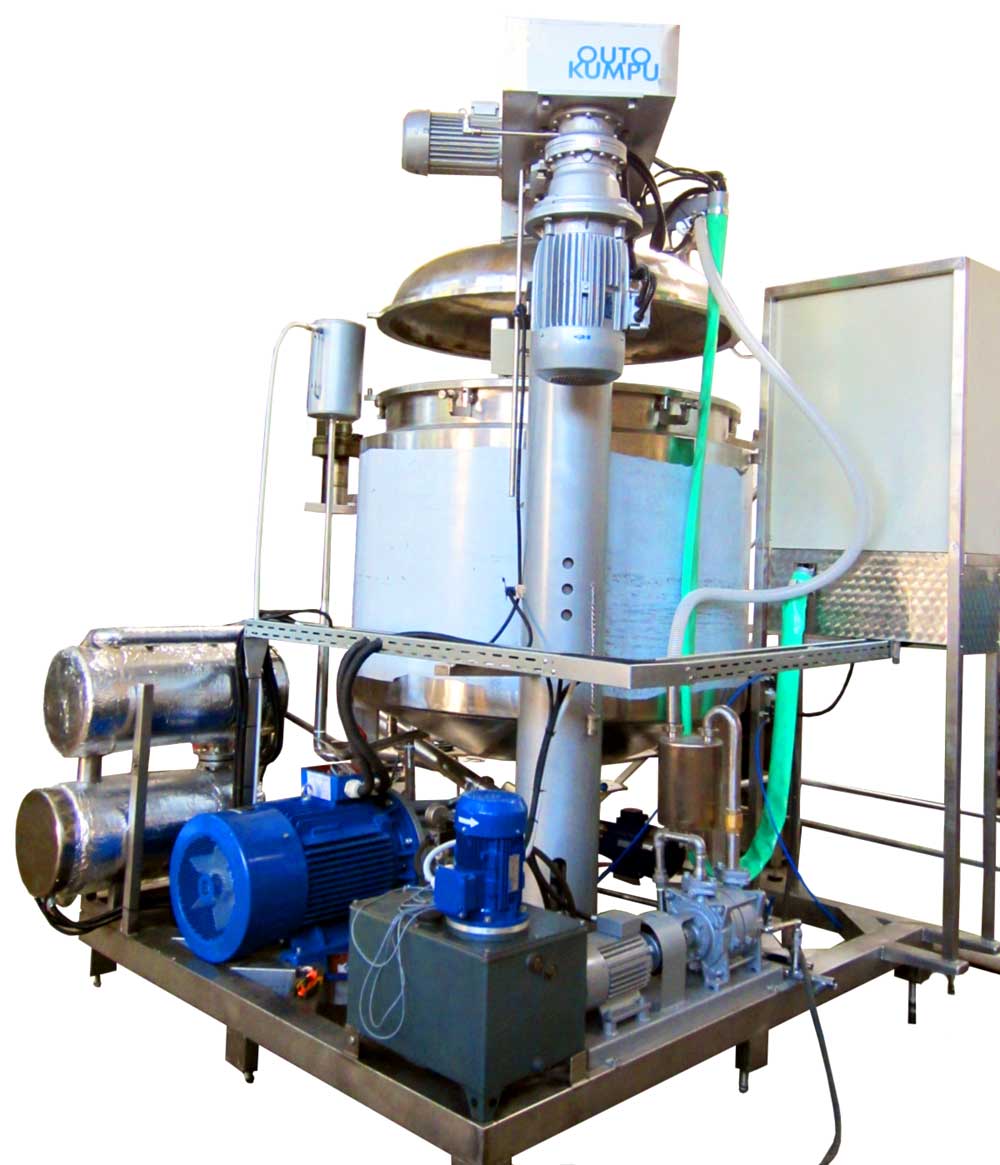

V-1500 1500 65 2600 х 2800 х 3820 4 680
V-1700 1700 75 2600 х 2800 х 3820 4 800

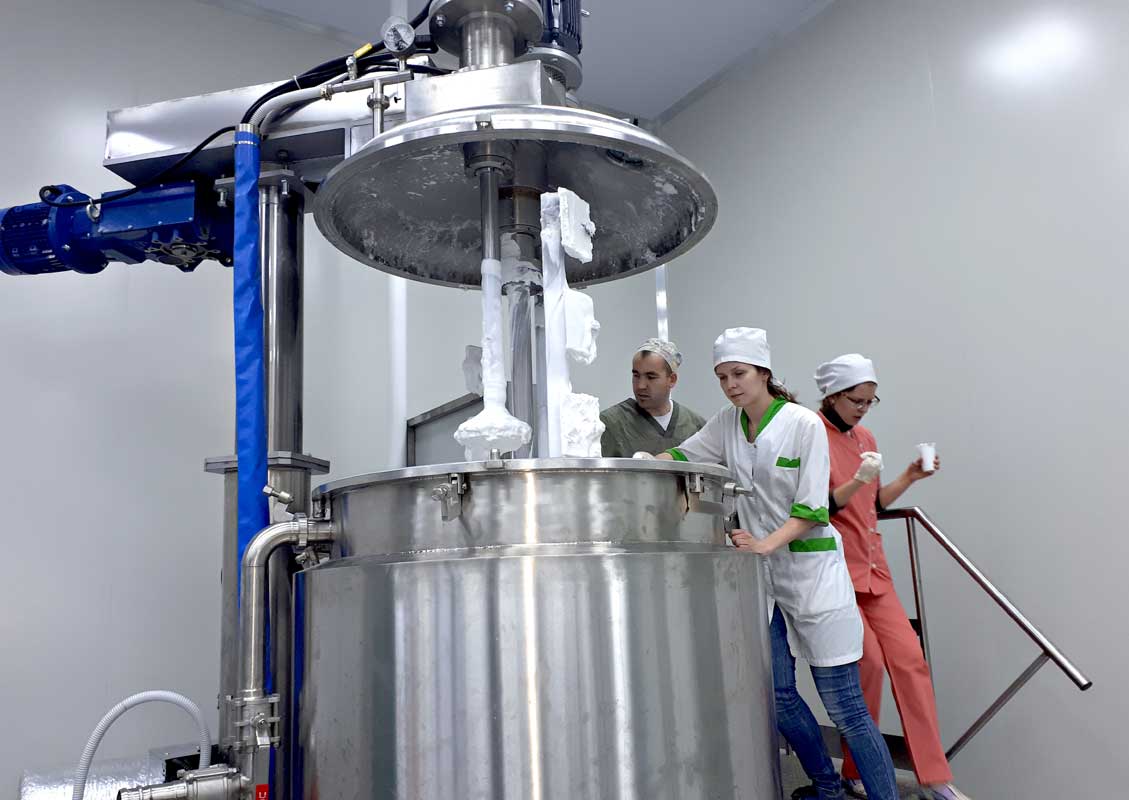

Homogenizers for cosmetics creams and hair colour

The vacuum homogenizers are used in cosmetics, pharmaceutical and chemical industry for production of emulsion production, cream, gells, haircolour etc. Mixing and homogenising elements are chosen depending on technologies of processing a material for homogenize.

  1. Mixing vessel with double jacket and insulation
  2. Anchor type agitator with scraper blades
  3. Homogenizer (or colloid mill)
  4. Spiral agitator (or dissolver)
  5. Vacuum system with pipeline
  6. Lifting and lowering of the lid including also mixing elements by hydraulic system
  7. Dense liquid pump
  8. Electrical control panel
  9. Frame

The parts in contact with the product are made in stainless steel AISI 316. The machine is designed in accordance with GMP directives. Homogenizer is mounted on frame and does not require special foundation. The vacuum homogenizers can be used in all branches of industry in which liquid to semi-solid or solid products are to be manufactured in different process stages, this to be performed in a single installation:

  • product deaeration (production in a vacuum)
  • batch identification requirement
  • cleaning facility
  • constant controlled heating and cooling
  • identical process concepts from 5 liters laboratory unit to production systems with capacities of up to 1 700 liters

The selection of the mixing elements is principally dependent on the technology, product viscosity, vessel dimensions etc.

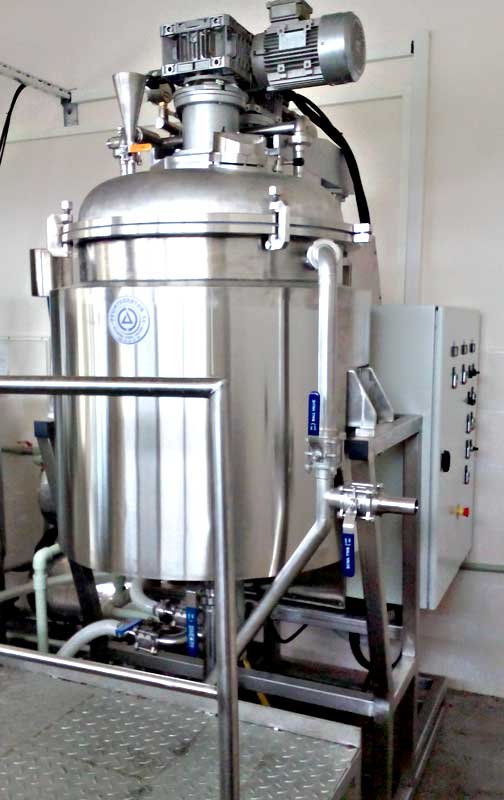

V-300

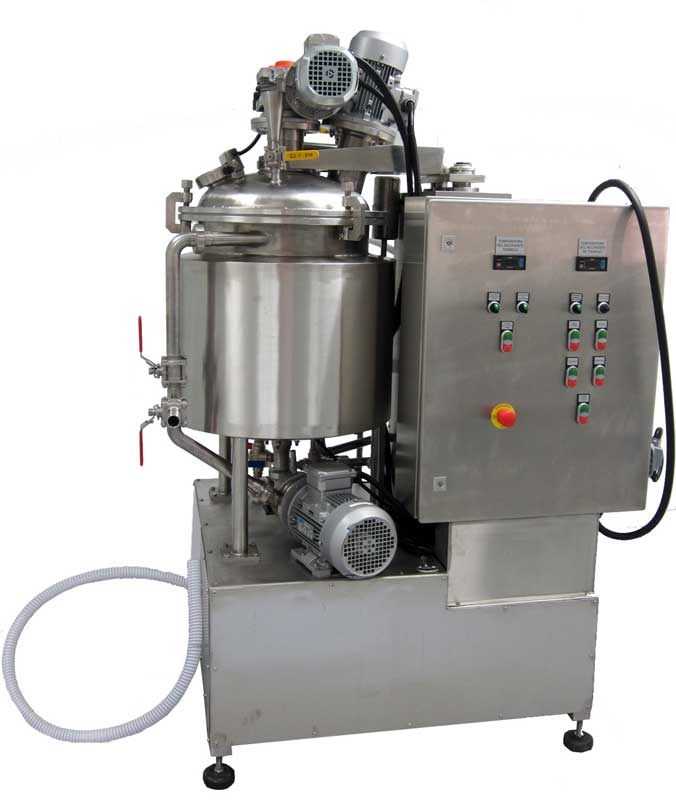

V-50

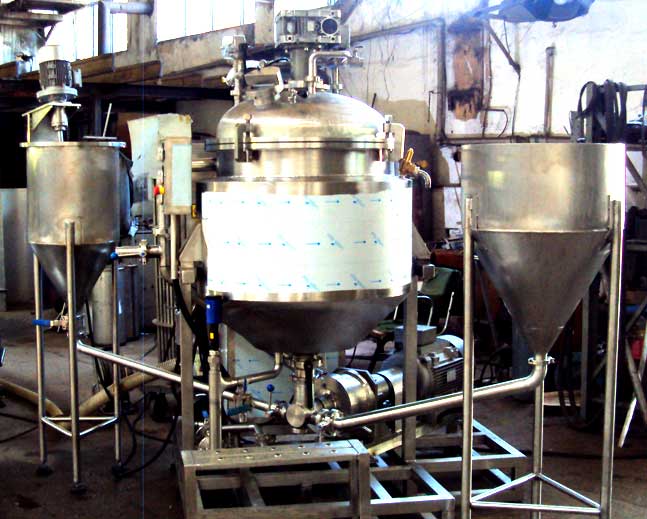

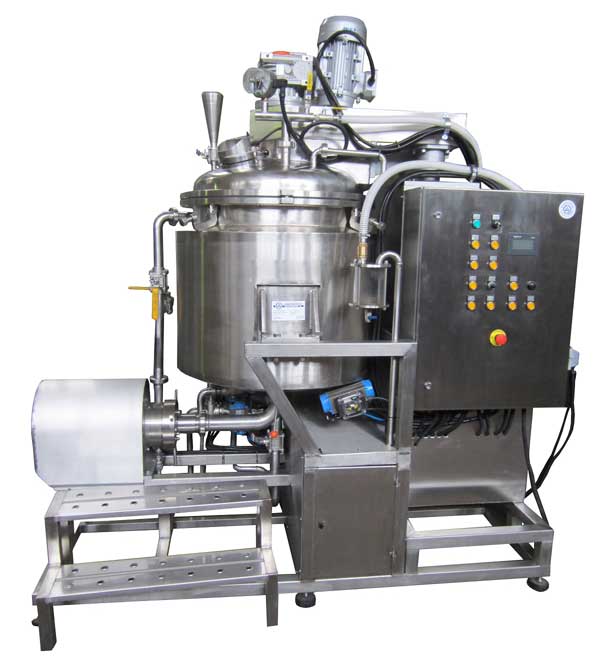

V-200

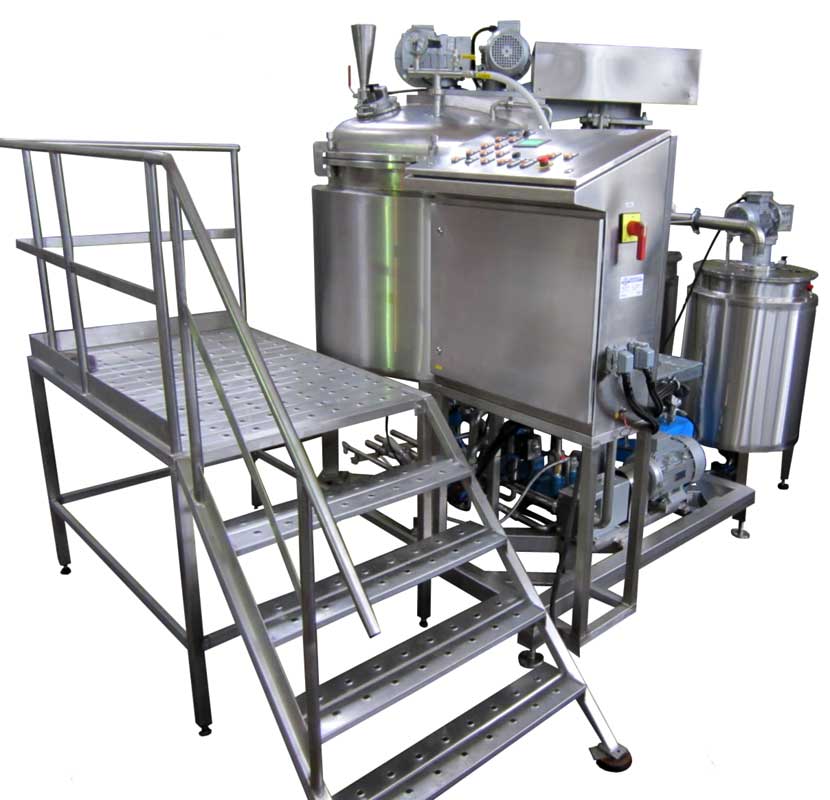

V-500

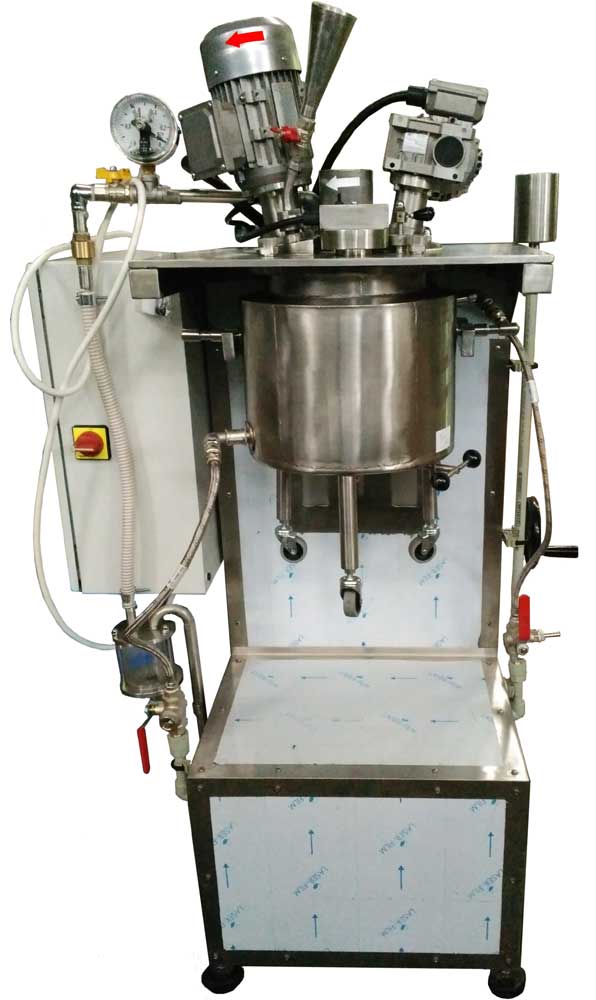

V-10






Model Useful volume, l Installed power, kW Overal dimensions LxBxH, mm Max mounting high, mm
V-5 5 3.75 940 х 820 х 1220 -
V-10 10 6 800 х 700 х 1700 -
V-50 50 6 1200 х 600 х 1910 2 450

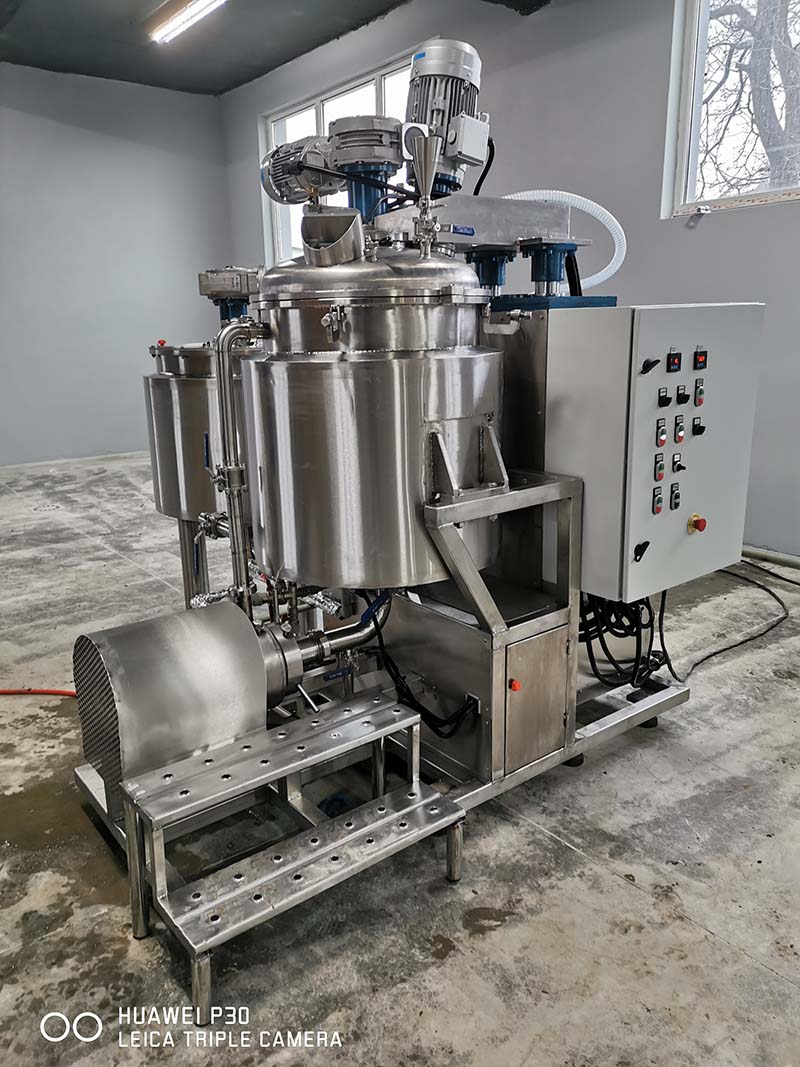

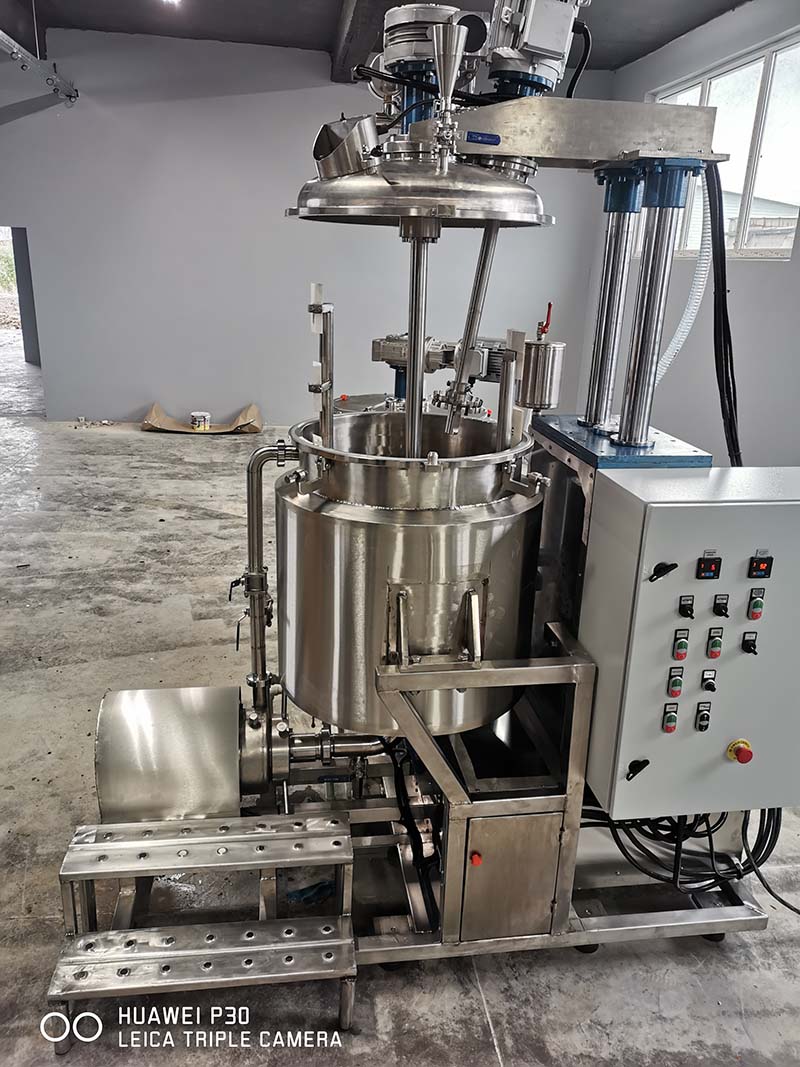

V-150 150 14 1850 х 750 х 2150 2 800
V-200 200 15 2000 x 1000 x 2000 2 800
V-300 300 15 2000 х 1000 х 2200 3 000
V-400 400 15 2300 х 1500 х 2300 3 200
V-500 500 22 2400 х 2200 х 2800 3 600
V-600 600 38 2500 х 2200 х 2900 3 700
V-700 700 32 2500 х 1600 х 3100 4 000
V-800 800 32 2500 х 1600 х 3100 4 000
V-1000 1000 32 2500 х 2000 х 3300 4 100

Equipment for food-processing industry

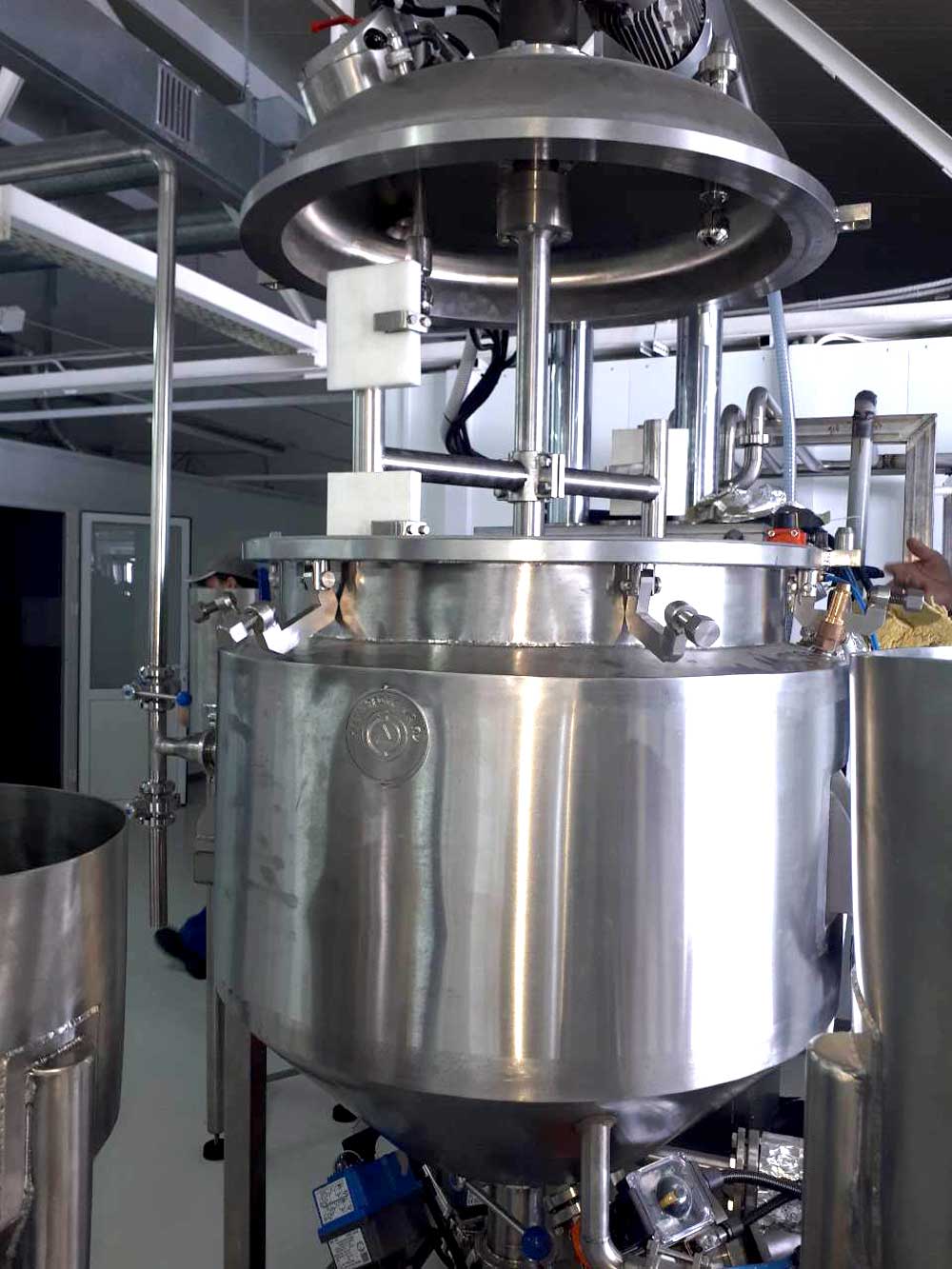

Homogenizer for mayonaise

All units and parts in contact with the treated product, made of stainless steel AISI 304. The homogenizer is mounted on a common frame and needs no special foundation. The choice of working bodies depends on the type of materials to be homogenized, technology for the production of the product, the product viscosity and dimensions of the vessel. Depending on the client data can be made homogenizer in complexity, different by the developed till now, so that most fully satisfies the requirements of the technology.

  1. Mixing vessel with jacket
  2. Scraper – stirrer agitator
  3. Homogenizer
  4. Vacuum system - automatic maintenance of vacuum
  5. Control panel for management and temperature control
  6. Frame








Homogenizer for shampoo

Processing equipment for shampoo consists of the following basic facilities:

  1. Mixing vessel with propeller
  2. Mixing vessel with anchor stirrer
  3. Screw pump
  4. Water Pump
  5. Tanks
  6. Electrical panel
  7. Pipes

The number and volume of mixing vessels depends on the customer's project.

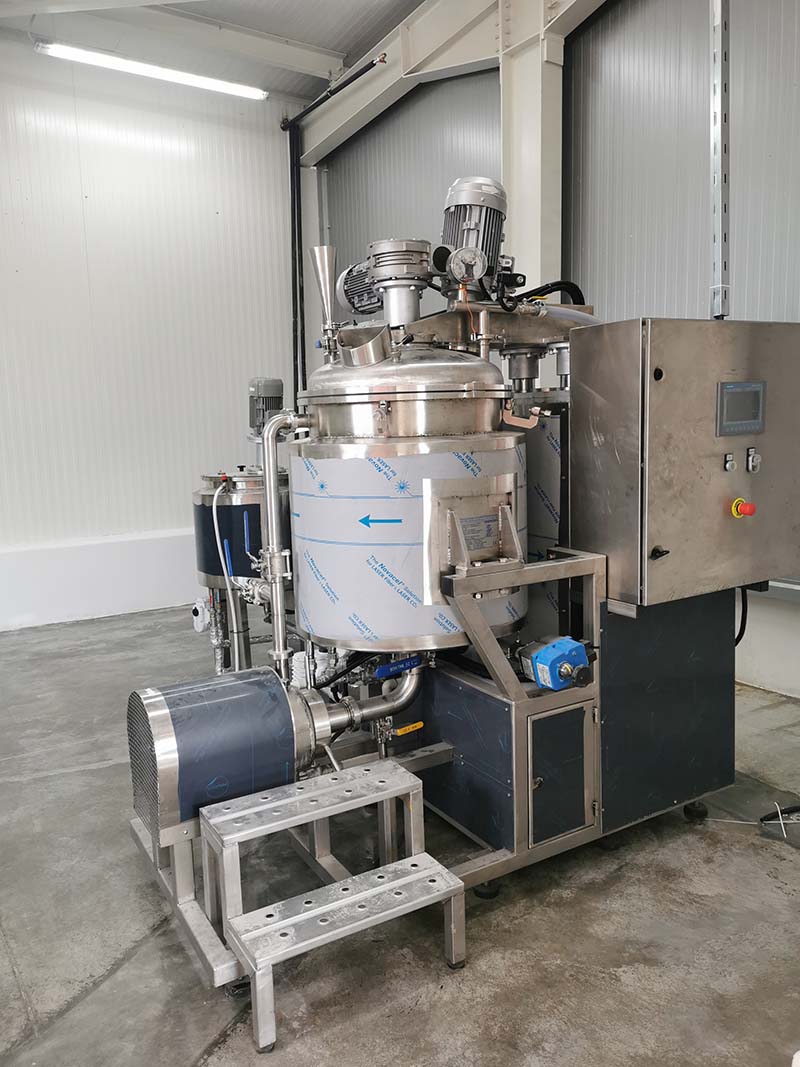

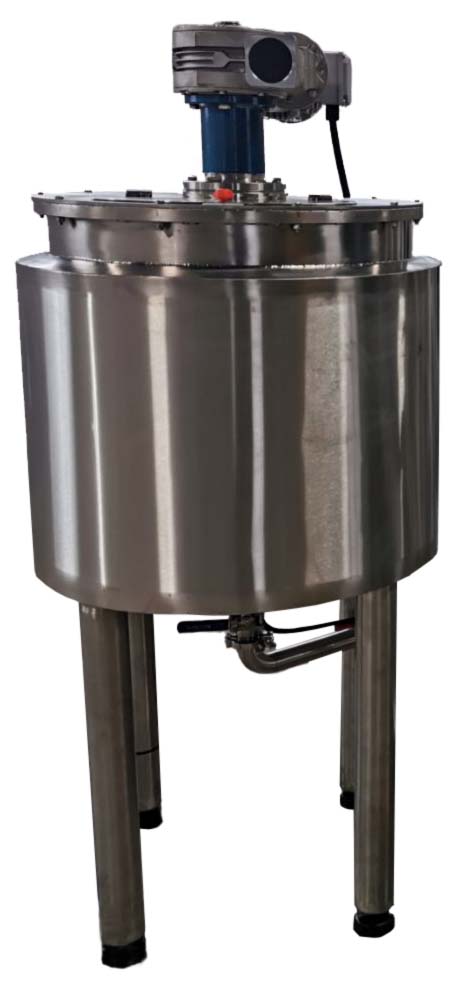

Топилен съд маслена фаза V-150л

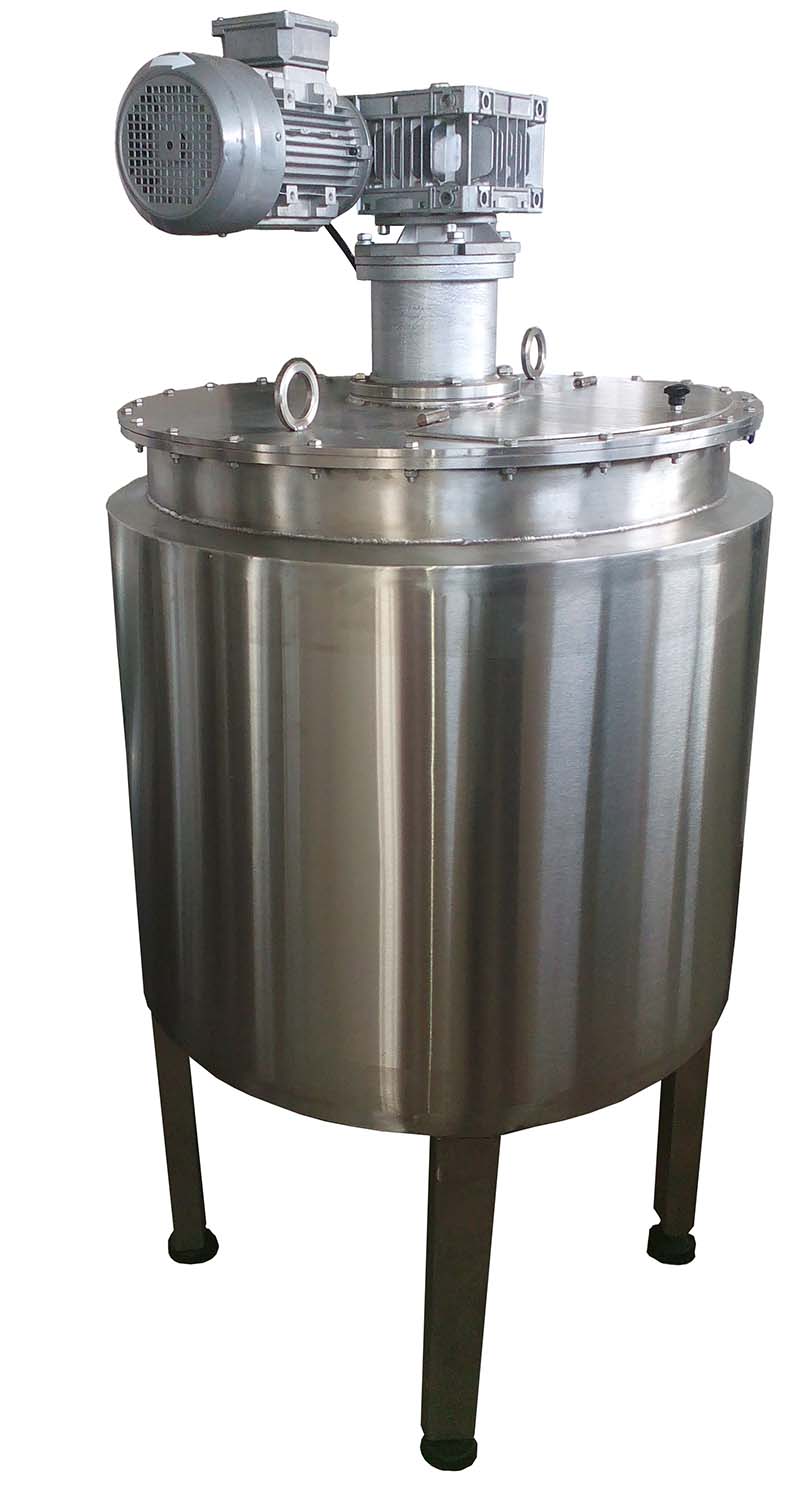

Топилен съд маслена фаза V-300л

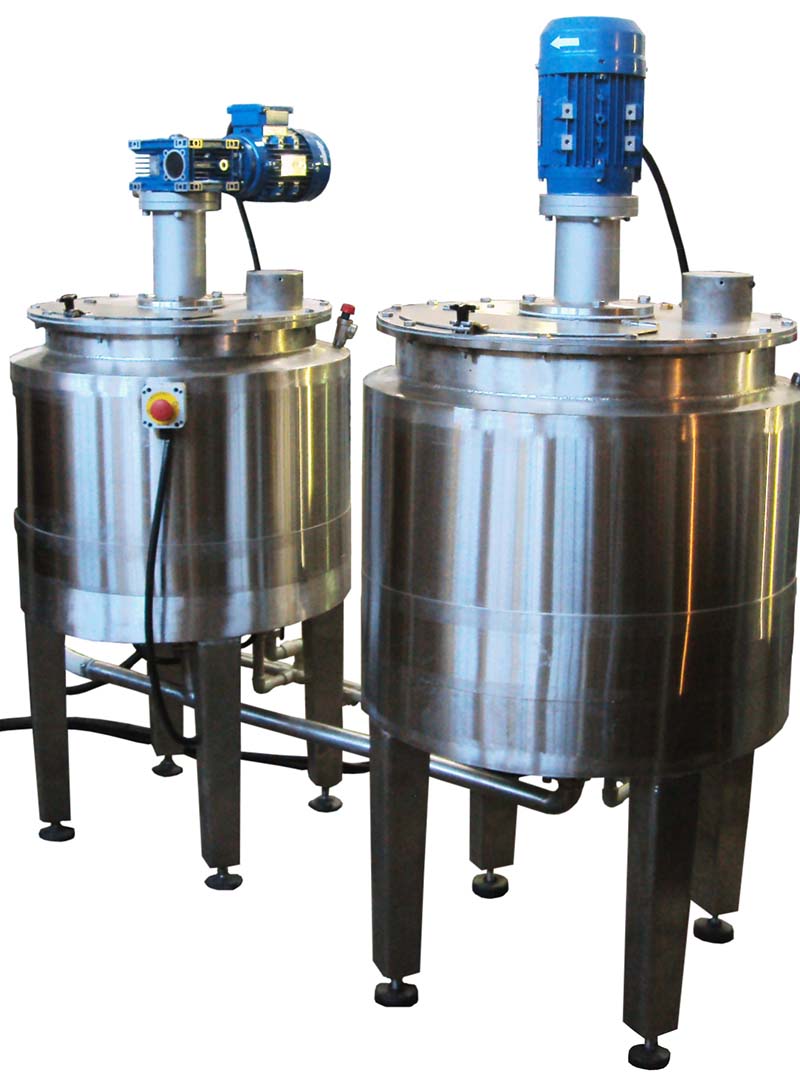

Топилни съдове


To the stand

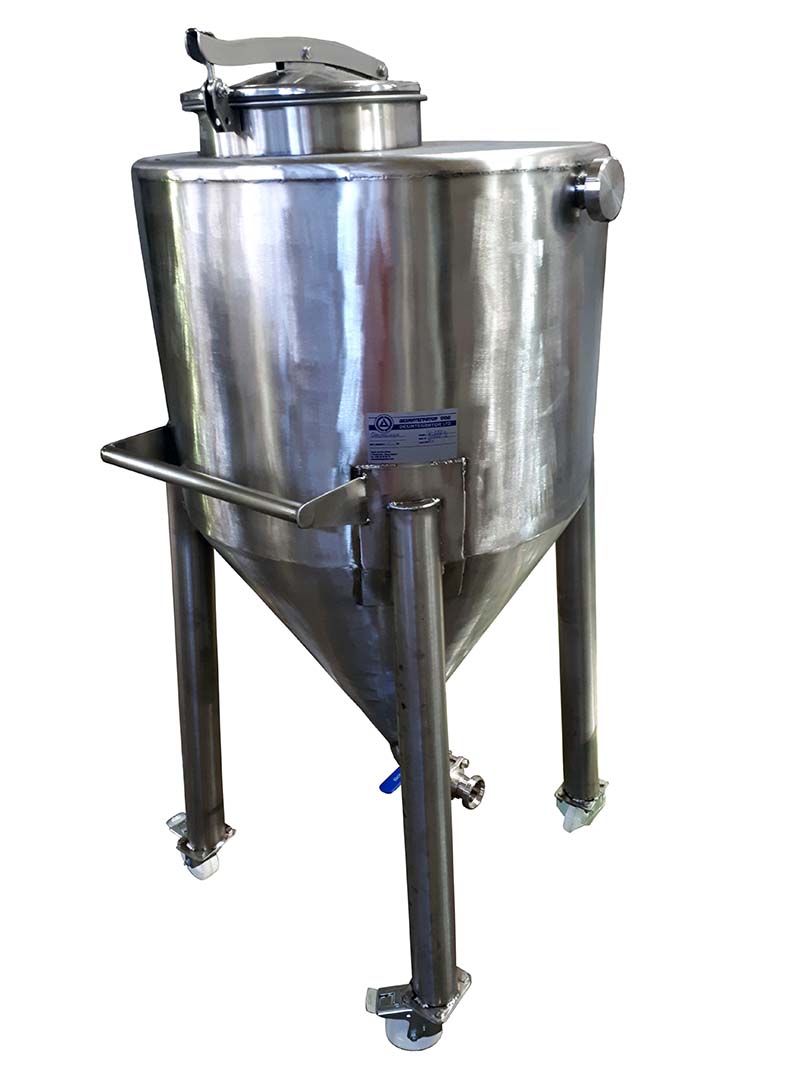

Отстойник V-250л.


Vessels with agitators

Depending on the customer's requirements, the company manufactures mixing vessels with or without a shirt and with various stirrers.

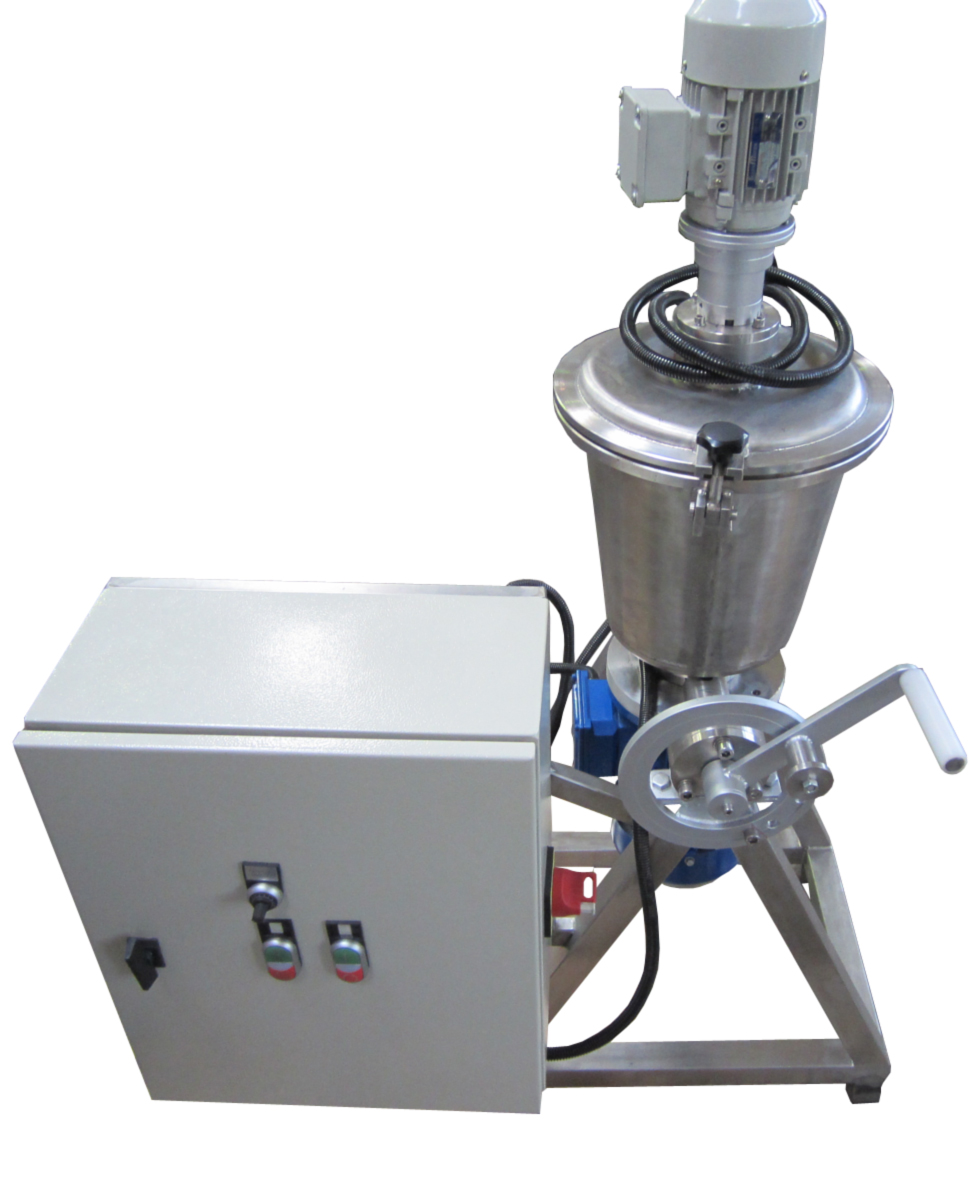

Mixer for make up




The mixer is designed for mixing of dry powder and semi-products for production of cosmetic powder and make-up.

The mixer consist of:

Type   V-10 V-40
Useful volume cubic dm 10 40
Installed power kW 1.56 4.18
Propeller rounds/minute 2880 2880
Scraper stirrer rounds/minute 11 14

Equipement for chemical industry

Reactors for homogenizing of building mixtures

  1. Air micronizer
  2. Conical mixer
  3. Micronizer M-103
  4. Dispensers conveyors
  5. Rotary airlocks
  6. Sleeve filters

Depending on the client's task, the completeness of the reactor is chosen, so as to fully meet the requirements of technology.
